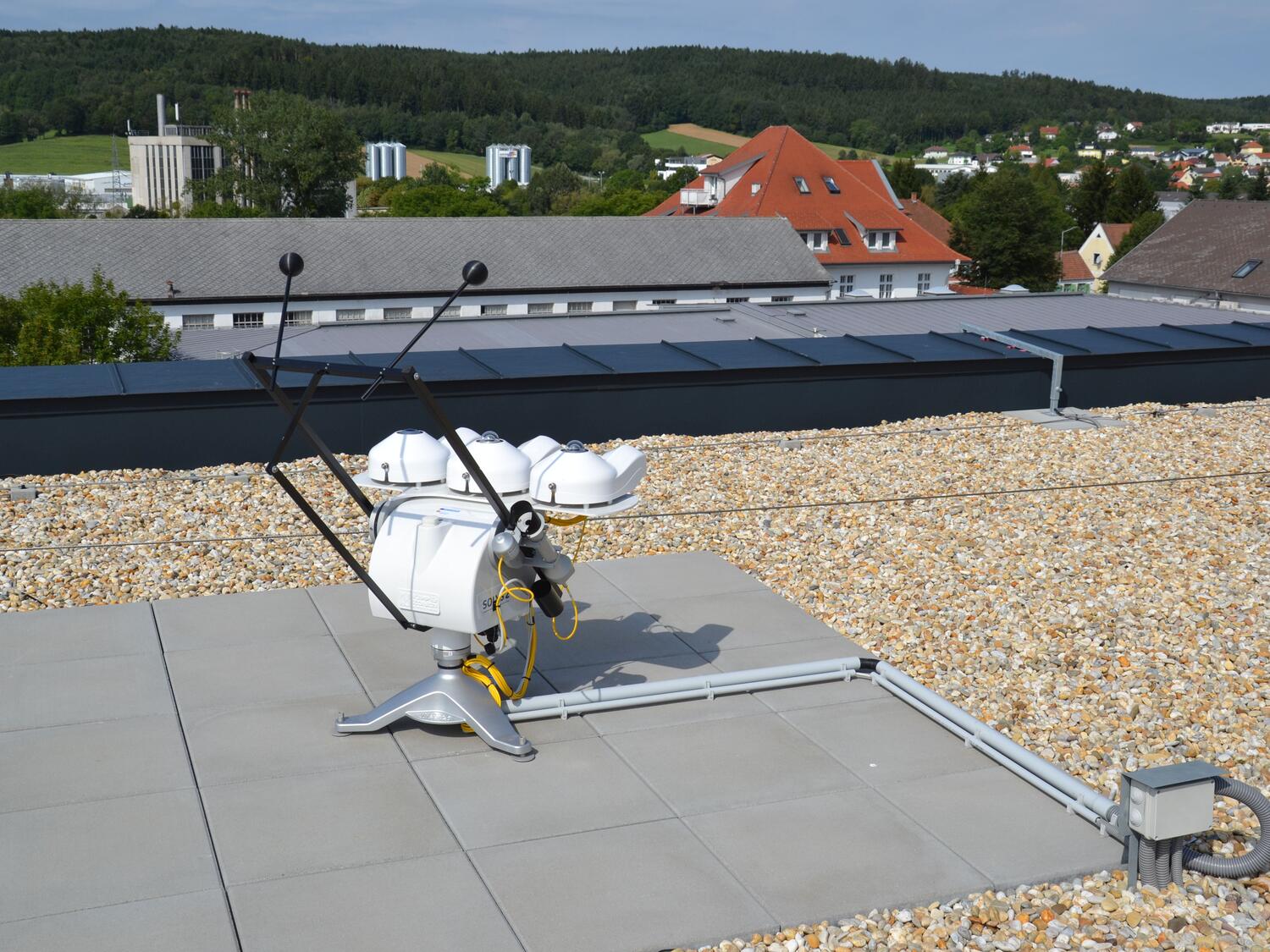

The ENERGETIKUM test building is also equipped with a large number of high-quality radiation sensors. These record radiation values (global radiation, diffuse radiation, direct radiation, IR radiation) in various planes and orientations. The measuring devices are stationary in order to continuously record data for weather analysis. This allows the external influences on the ENERGETIKUM test building to be analysed more closely. In this way, correlations between external weather conditions, user comfort in the offices and the operating behaviour of the building services can also be identified.
TECHNICAL DATA:
- Global radiation horizontal + vertical (on all four sides of the building)
- IR radiation horizontal + vertical (on the south and west façades of the building)
- Diffuse radiation horizontal
- Direct radiation horizontal
- Global radiation into the room vertically (on the south and west sides of the building)
- IR radiation into the room vertically (on the south and west sides of the building)
- Outdoor temperature
- Relative humidity
- Air pressure
- Wind speed and wind direction
- Precipitation (type and amount)
LOCATION:
Pinkafeld
CONTACT PERSON:
DI Roman Stelzer BSc
Roman.Stelzer[at]forschung-burgenland.at
